REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: 33808 - WIX Filters

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back to the list

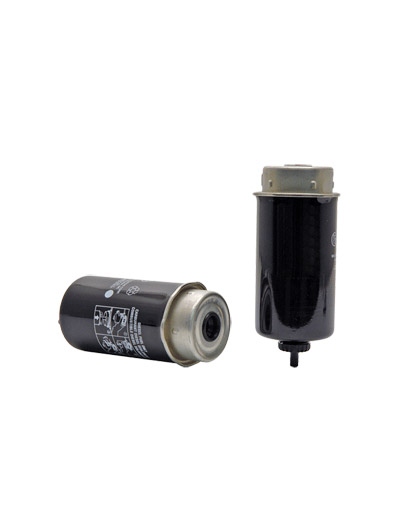

Fuel filter: 33808

FUEL FILTERS

EAN CODE: 765809338081

Status: AVAILABLE

REACH information

202

APPLICATION
SUBSTITUTES

SCHAEFF

SKL-Serie | 75-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
873	Perkins 1006-60T		100	136 i Partly/or Fuel Filter	02/1999 → i Partly/or

CASE-IH (CNH GLOBAL)

CS/CS PRO/CS Compact-Serie | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CS 80	Perkins 1004-40 Turbo HR	3990	61	84	01/2006 → 12/2007
CS 90	SISU		67	91	01/2006 → 12/2007

JX-Serie | 02-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1090 U	NEF 445 Turbo	4500	67	91 i Use for OE no. 2854796 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2854796
1100 U	NEF 445 Turbo	4500	74	100	01/2004 → 12/2008
60	Tier2	2900	44	60 i Use for OE no. 5181823. Note: Valid w/VAR.130 Fuel Filter	01/2004 → 12/2006 i Use for OE no. 5181823. Note: Valid w/VAR.130
70 TIER 2		2931	51	69 i Use for OE no. 5181823. Filter for: VALID w/VAR.130 Fuel Filter	01/2004 → 02/2007 i Use for OE no. 5181823. Filter for: VALID w/VAR.130
80			59	80 i Use for OE no. 5181823. Note: Valid w/VAR.130 Fuel Filter	01/2004 → 01/2007 i Use for OE no. 5181823. Note: Valid w/VAR.130
90 TIER 2				i Use for OE no. 5181823. Note: Valid w/VAR.130 Fuel Filter	01/2004 → 02/2007 i Use for OE no. 5181823. Note: Valid w/VAR.130
95 PLUS TIER 2					12/2014 →
95 TIER 2		3908	72	98 i Use for OE no. 5181823. Note: Valid w/VAR.130 Fuel Filter	01/2004 → 03/2007 i Use for OE no. 5181823. Note: Valid w/VAR.130

JXU-Serie | 02-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
JX 1070U	Iveco NEF F4CE0404D Tier 2	4485	53	72 i Use for OE no. 2855755 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2855755
JX 1080U	Iveco NEF F4CE0404C Tier 2	4485	60	82	01/2004 → 12/2008
JX 1090U	Iveco NEF F4CE0454E Tier 2	4485	67	91 i Use for OE no. 2854796 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2854796
JX 1100U	Iveco NEF F4CE0454D Tier 2	4485	74	100 i Use for OE no. 2854796 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2854796

DEUTZ-FAHR (SAME DEUTZ-FAHR)

5400-Serie

	kW	HP
5435H	85	115
5445H	85	115
5465H	110	150
5485HT	129	175
5485HT Climber	129	175

5500-Serie | 03-11

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5545H	SISU 66ET	6600	129	176	01/2003 → 12/2006
5565H	SISU 66ETA	6600	162	221	01/2003 → 12/2006
5585HT	SISU 74ETA	7400	184	250	01/2004 → 12/2011

FIATAGRI (CNH GLOBAL)

110-Serie | 84-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
110-90	8065.05		81	110	09/1986 → 12/2003

LANDINI (ARGO)

Landpower | 05-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
125	Perkins 1006E60TA	5985	87	118	01/2005 → 12/2007

Legend II (New Generation) | 01-05

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
125 TDI	Perkins 1106-E60TA	5985	87	118	01/2003 → 12/2005
135 TDI	Perkins 1106-E60TA	5985	99	134	01/2003 → 12/2005
145 TDI	Perkins 1106-E60TA	5985	107	146	01/2003 → 12/2005
165 TDI	Perkins 1006E60TA	5985	119	163	01/2003 → 12/2005
185 TDI	Perkins 1106-E60TA	5985	135	184	01/2003 → 12/2005

MASSEY-FERGUSON TRAKTOREN (AGCO)

7400-Serie | 03-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
7497	AGCO/Sisu				01/2006 →
MF 7485	Sisu 66.ETA	6596	120	163	02/2003 → 12/2008
MF 7490	AGCO/Sisu 66.ETA	6596	132	179	02/2003 →

MCCORMICK (ARGO)

MC-Serie | 01-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
120 Power 6 (T1)	Perkins 1006	6728	86	115	01/2004 → 12/2007
120 Power 6 (T2)	Perkins 1006				01/2004 →
135 Power 6 (T1)	Perkins 1106-E60TA	6000	98	132	01/2002 → 12/2004
135 Power 6 (T2)	Perkins 1006C-60TWGI	6000	100	136	01/2004 → 12/2007

MTX-Serie | 01-09

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
155	Perkins 1006-60TWI	5985	120	163 i Partly/or Fuel Filter	09/2001 → 12/2003 i Partly/or
175	Perkins 1006-60TWI	5985	129	176 i Partly/or Fuel Filter	09/2001 → 12/2003 i Partly/or

NEW HOLLAND

TD/TDD-Serie | 02-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TD60D	Iveco 8035.050 Tier2	2930	44	60 i Use for OE no. 5181823 Fuel Filter	01/2006 → 11/2016 i Use for OE no. 5181823
TD60D Straddle Mount	Iveco 8035.050 Tier2	2931	43	59	01/2006 → 11/2016
TD70D	Iveco 8035.25C Tier 2	2931	50	69	01/2006 → 05/2016
TD80 / D	Iveco 8045.05R Tier 2	3908	59	80 i Use for OE no. 5181823 Fuel Filter	01/2004 → i Use for OE no. 5181823
TD95 Straddle Mount	Iveco 8045.025L Tier 2	3908	72	98 i Use for OE no. 5181823 Fuel Filter	01/2006 → 11/2016 i Use for OE no. 5181823

TL-A Serie

	CC	kW	HP
TL100A	4500	74	100
TL70A	4500	53	72
TL80A	4500	60	82
TL90A	4500	67	91

TL-Serie | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TL 100 A	NEF F4 CE 0454D	4485	74	100 i Use for OE no. 2855756 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2855756
TL 70 A	NEF	4485	53	72	01/2004 → 12/2008
TL 80 A	NEF	4485	59	80 i Use for OE no. 2855756 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2855756
TL 90 A	NEF	4485	67	91 i Use for OE no. 2855756 Fuel Filter	01/2004 → 12/2008 i Use for OE no. 2855756

TM-Serie | 99-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TM120		7480	91	124 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters Fuel Filter	06/2002 → 12/2007 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters
TM140		7480	106	144 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters Fuel Filter	06/2002 → 12/2007 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters
TM155	NH 675-TA/HA	7480	114	155 i Use for OE no. 84559024. Water separator. Filter for: Engine with 2 Fuel Filter, SN Range after ACM218236 Fuel Filter	06/2002 → 12/2007 i Use for OE no. 84559024. Water separator. Filter for: Engine with 2 Fuel Filter, SN Range after ACM218236
TM175		7480	130	177 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters Fuel Filter	06/2002 → 03/2007 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters
TM190, 190DT		7480	142	194 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters Fuel Filter	06/2006 → 03/2007 i Use for OE no. 84559024 (S/N Range) after ACM218236. Valid with Engine with 2 Fuel Filters

VALTRA / VALMET (AGCO)

S-Serie | 01-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 260	SISU 645 DSBAE	8400	191	260	10/2001 →
S230	SISU 645 ESBAE	8400	169	230	01/2001 → 12/2003

CASE-INTERNATIONAL/CASE-IH

2855755
5181823

DEUTZ AG / DEUTZ-FAHR (KHD)

836866577

IVECO

5041 07584

MASSEY-FERGUSON

4280423M1

NEW HOLLAND (CNH)

2854796
2855756
84559024
84565924

VALTRA-VALMET

836866776
