REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: WF8501 - WIX Filters

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that this product contains following SVHC listed on the Candidate List in concentration above 0,1% (w/w):

Substance name:
Diboron-trioxide : 1303-86-2
Lead : 7439-92-1
Lead-monoxide : 1317-36-8
Lead-titanium-trioxide : 12060-00-3

Last update: 2024-09-19

Back to the list

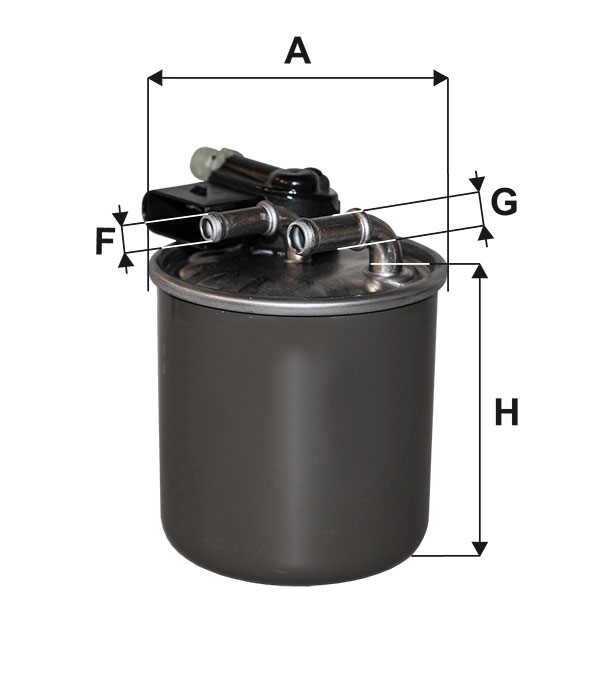

Fuel filter: WF8501

FUEL FILTERS

EAN CODE: 5904608850102

Status: AVAILABLE

REACH information

90.5

100

APPLICATION
SUBSTITUTES

INFINITI

Q30/QX30 (H15E) | 15-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.2 D (H15E)	22DSL	2143	125	170 i Left-hand drive Fuel Filter	11/2015 → i Left-hand drive

MERCEDES-BENZ

A-Klasse (W176) | 12-18

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A 180 CDI BlueEFFICIENCY 1.8 (W176)	OM 651.901	1796	80	109 i Left-hand drive Fuel Filter	09/2012 → 03/2014 i Left-hand drive
A 200 CDI 1.8 BlueEFFICIENCY (W176)	OM 651.901	1796	100	136 i Left-hand drive Fuel Filter	09/2012 → 10/2014 i Left-hand drive
A 200 CDI 2.2 BlueEFFICIENCY (W176)	OM 651.930	2148	100	136 i Left-hand drive Fuel Filter	03/2014 → 05/2018 i Left-hand drive
A 220 CDI BlueEFFICIENCY (W176)	OM 651.930	2148	120	163 i Left-hand drive Fuel Filter	09/2012 → 05/2018 i Left-hand drive
A 220 CDI BlueEFFICIENCY (W176)	OM 651.930	2148	125	170 i Left-hand drive Fuel Filter	09/2012 → 05/2018 i Left-hand drive
A 220 d (W176)	OM 651.930	2148	130	177 i Left-hand drive Fuel Filter	07/2015 → 05/2018 i Left-hand drive

B-Klasse (W246 + W242) | 11-18

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
B 180 CDI 1.8 BlueEFFICIENCY (246.200)	OM 651.901	1796	80	109 i Left-hand drive Fuel Filter	10/2011 → 08/2014 i Left-hand drive
B 200 CDI BlueEFFICIENCY (246.201/202/208)	OM 651.901/ OM 651.930	1796	100	136 i Left-hand drive Fuel Filter	10/2011 → 12/2018 i Left-hand drive
B 220 CDI BlueEFFICIENCY (246)	OM 651.930	2148	130	177 i Left-hand drive Fuel Filter	10/2014 → 12/2018 i Left-hand drive
B 220 CDI BlueEFFICIENCY (246.203)	OM 651.930	2148	125	170 i Left-hand drive Fuel Filter	09/2012 → 12/2018 i Left-hand drive

C-Klasse (W204/C204/S204) | 07-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C 220 CDI (204.008/208)	OM 646.811	2148	125	170 i With integrated heating Fuel Filter	03/2007 → 10/2008 i With integrated heating
C 300 CDI BlueEFFICIENCY (204.092/292)	OM 642.832	2987	170	231	05/2011 → 08/2014
C 350 CDI BlueEFFICIENCY (204)	OM 642.834	2987	195	265	05/2011 → 08/2014

CLA (C117/X117) | 13-19

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CLA 200 CDI (117.301)	OM 651.901	1796	100	136 i Left-hand drive Fuel Filter	09/2013 → 08/2014 i Left-hand drive
CLA 200 CDI (117.302, 117.308)	OM 651.930	2143	100	136 i Left-hand drive Fuel Filter	07/2014 → 03/2019 i Left-hand drive
CLA 220 CDI (117.303)	OM 651.930	2148	125	170 i Left-hand drive Fuel Filter	03/2013 → 03/2019 i Left-hand drive
CLA 220 CDI (117.303/305)	OM 651.930	2148	130	177 i Left-hand drive Fuel Filter	09/2014 → 03/2019 i Left-hand drive
CLA 220 CDI / d (117.903, 117.905)	OM 651.930	2143	120	163 i Left-hand drive Fuel Filter	01/2015 → 03/2019 i Left-hand drive

CLS (C218) CLS Shooting Brake (X218) | 10-17

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CLS 350 CDI BlueTEC (218)	OM 642.853/854	2987	195	265	12/2010 → 08/2014
CLS 350 CDI BlueTEC (218)	OM 642.853	2987	190	258	11/2012 → 12/2017
CLS 350 CDI BlueTEC (218)	OM 642.852/858	2987	185	252	11/2012 → 12/2017

E-Klasse (W/S212) | 09-16

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 300 CDI BE / BlueTEC (212)	OM 642.850/858	2987	170	231	08/2010 → 12/2016
E 350 CDI BlueEFFICIENCY (212)	OM 642.852/858	2987	195	265	08/2010 → 12/2015
E 350 CDI BlueTEC (212)	OM 642.858	2987	185	252	03/2013 → 12/2016
E 350 CDI BlueTEC (212)	OM 642.852/858	2987	190	258	05/2014 → 12/2016

E-Klasse Coupé / Cabriolet (A/C207) | 09-16

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 350 CDI BlueEFFICIENCY (207)	OM 642.852/858	2987	195	265	05/2011 → 12/2013
E 350 CDI BlueTEC (207)	OM 642.838	2987	185	252	04/2013 → 12/2016
E 350 CDI BlueTEC (207)	OM 642.838	2987	190	258	05/2014 → 12/2016

E-Klasse, E-Klasse Cabrio (W/S213, A/C238) | 16-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
E 350 d (213, 238)	OM642.855	2987	190	258	05/2016 → 05/2018
E 350 d 4-matic (213, 238)	OM 642.873	2987	190	258	06/2017 → 05/2018

G-Klasse (W461/463) | 89-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
G 300 CDI Professional (W461)	OM 642.884	2987	135	184	12/2010 →
G 350 CDI BlueTEC (W463)	OM 642.886	2987	155	211	04/2010 →
G 350 d (463.342/346/348)	OM 642.886/887	2987	180	245	06/2015 →

GL (X164) | 06-12

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GL 320 CDI BlueTEC (X164.825)	OM 642.820	2987	155	211 i Partly/or. With integrated heating Fuel Filter	07/2008 → 06/2009 i Partly/or. With integrated heating
GL 350 CDI BlueEFFICIENCY (X164)	OM 642.872	2987	195	265	10/2010 → 08/2012
GL 350 CDI BlueTEC (X164)	OM 642.820	2987	155	211 i With integrated heating Fuel Filter	05/2009 → 08/2012 i With integrated heating

GL / GLS (X166) | 12-19

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
350 CDI BlueTEC, 350d (166.823/824)	OM 642.826	2987	183	249	07/2012 → 10/2015
350 CDI BlueTEC, 350d (166.823/824)	OM 642.826	2987	190	258	08/2012 → 04/2019

GLA (X156) | 13-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GLA 200 CDI, GLA 200d (X156)	OM 651.930	2143	100	136 i Left-hand drive Fuel Filter	09/2013 → i Left-hand drive
GLA 220 CDI (156.905, 156.903)	OM 651.930	2148	125	170 i Left-hand drive Fuel Filter	09/2013 → i Left-hand drive
GLA 220d (X156)	OM 651.930	2143	130	177 i Left-hand drive Fuel Filter	08/2015 → i Left-hand drive

GLC / GLC Coupé (X253/C253) | 15-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GLC 350 d (253.325/925)	OM 642.873	2987	190	258	10/2016 → 04/2019

GLE (W166) | 15-18

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GLE 350 d (W166)	OM 642.826	2987	183	249	04/2015 → 10/2018
GLE 350 d (W166)	OM 642.826	2987	190	258	04/2015 → 10/2018

GLE Coupé (C292) | 15-19

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GLE 350 d (C292)	OM 642.826	2987	190	258	06/2015 → 10/2019

GLK (X204) | 08-15

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
GLK 350 CDI (204.992)	OM 642.832	2987	170	231 i With integrated heating Fuel Filter	10/2010 → 07/2012 i With integrated heating
GLK 350 CDI BlueEFFICIENCY (204.993)	OM 642.835	2987	195	265	05/2012 → 08/2015

M-Klasse (W164) | 05-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
ML 300 CDI BlueEFFICIENCY (W164)	OM 642.820	2987	150	204 i With integrated heating Fuel Filter	02/2010 → 12/2011 i With integrated heating
ML 320 CDI BlueTEC (W164.125)	OM 642.820	2987	155	210 i With integrated heating Fuel Filter	07/2008 → 06/2009 i With integrated heating
ML 350 CDI (W164.125)	OM 642.820	2987	170	231 i With integrated heating Fuel Filter	02/2010 → 12/2011 i With integrated heating
ML 350 CDI BlueTEC (W164.124)	OM 642.820	2987	155	211 i With integrated heating Fuel Filter	05/2009 → 12/2011 i With integrated heating

M-Klasse (W166) | 11-15

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
ML 350 CDI BlueTEC (166.024)	OM 642.826	2987	190	258	09/2011 → 02/2015

R-Klasse (W251) | 05-17

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 350 CDI (W251.023/123)	OM 642.872	2987	195	265	06/2010 → 12/2014

S-Klasse (W221) | 05-13

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 350 CDI BlueTEC (W221)	OM 642.862, 642.868	2987	190	258	09/2010 → 12/2013

S-Klasse / S-Klasse Coupé / Cabrio (W222, A/C217)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
S 350 d BlueTEC 4Matic (W222.133)	OM 642.867	2987	185	252	02/2014 → 05/2017
S 350 d BlueTEC (W222.032/132)	OM 642.861	2987	190	258	06/2013 → 05/2017

Sprinter Classic (909 / Russia) | 13-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
313 CDI (909)	OM 646.701	2148	100	136	11/2016 →
413 CDI (909)	OM 646.701	2148	100	136	11/2016 →

MERCEDES-BENZ (DAIMLER AG)

642 090 31 52
642 090 53 52
642 090 60 52
A 642 090 31 52
A 642 090 53 52
A 642 090 60 52

NISSAN

16401-HG00A

Date of update: 2025-05-29 Back to the list Print Submit comment
