REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: 57000 - WIX Filters

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that this product contains following SVHC listed on the Candidate List in concentration above 0,1% (w/w):

Substance name:
Octamethylcyclotetrasiloxane : 556-67-2

Last update: 2024-09-19

Back to the list

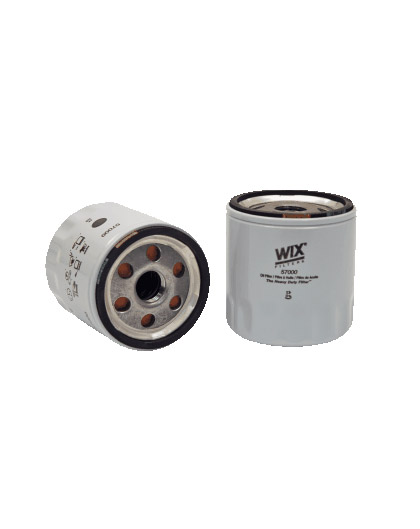

Oil filter: 57000

OIL FILTERS

EAN CODE: 765809570009

Status: AVAILABLE

REACH information

By-pass Valve

Anti-Drain Valve

Anti-siphon Valve

APPLICATION
SUBSTITUTES

CATERPILLAR

300 (Kettenbagger / Crawler Excavators) | 92-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
301.5	Caterpillar C1.1	1100	16	22
301.6 (MY6)	Caterpillar C1.1	1100	16	22
301.7 CR (JH7)	Caterpillar C1.1	1100	16	22	01/2019 →
301.8 (H8X)	Caterpillar C1.1	1100	16	22
302 CR (RHM)	Caterpillar C1.1	1100	14	19	01/2019 → 01/2020

3000 (Motoren / Engines)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3011C

C (Motoren / Engines) | 98-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
C1.1 (Industrial)
C1.5 (Industrial)				i For C5N1-, C6N1-, C8W1-, E1M1-, G7N1-, G7P1- Oil Filter	i For C5N1-, C6N1-, C8W1-, E1M1-, G7N1-, G7P1-

CB / CC / CD (Tandem-Walzen / Rollers) | 95-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CC24	Cat C1.5	1500	24	33	01/2008 → 12/2013

DYNAPAC-WINGET

CC-Serie | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CC 1000	Perkins 403C-11		17	24	03/2008 →
CC 800	Perkins 403D-11	1130	17	24	01/2011 → 12/2014
CC 900	Perkins 403D-11	1130	17	24

HAULOTTE

H-Serie | 06-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
H12SX	Perkins HL3511 U				01/2007 →

JCB (J.C. BAMFORD)

800 (Minibagger / Mini Excavators) | 88-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
802			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
802 Super	Perkins 103-15	24	33 i Use for OE no. 02/630935 Oil Filter	01/1999 → i Use for OE no. 02/630935
802.4			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
802.7 Plus			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
802.7 Super			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
803 Magnum			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
803 Plus/Super	Perkins 103	24	33 i Use for OE no. 02/630935 Oil Filter	01/1999 → i Use for OE no. 02/630935
804 Plus	103.15 Perkins		i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
804 Super	403-15	21	27 i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935

8000 (Minibagger / Mini Excavators) | 98-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
8010 CTS	Perkins 403D	13	18	01/2004 → 12/2013
8014	Perkins 403C	13	17 i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8014 (Tier 2)	404C-22 Tier II Perkins
8015	103-11	13	18 i Use for OE no. 02/630935. Filter for: Engine Oil Filter Oil Filter	01/1998 → 12/2005 i Use for OE no. 02/630935. Filter for: Engine Oil Filter
8015-2	Perkins 103-10		i Use for OE no. 02/630935 Oil Filter	01/2000 → i Use for OE no. 02/630935
8016	Perkins 103-10	13	18 i Use for OE no. 02/630935 Oil Filter	01/1998 → 12/2002 i Use for OE no. 02/630935
8016	404C-22 Tier II Perkins
8016	403C-11	15	20
8017	Perkins 103-10	13	18 i Use for OE no. 02/630935 Oil Filter	01/2000 → i Use for OE no. 02/630935
8018	Perkins 103-10	13	18 i Use for OE no. 02/630935 Oil Filter	01/2000 → i Use for OE no. 02/630935
8018	403C-11	15	20
8018 CTS	Perkins 403D-11	15	20 i Use for OE no. 02/630935 Oil Filter	10/2011 → i Use for OE no. 02/630935
8018 CTSAG			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8018 CTSDL			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8018 Super			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8020 CTS	Perkins 403D-11	14	19 i Use for OE no. 02/630935 Oil Filter	01/2007 → 01/2020 i Use for OE no. 02/630935
8025	Perkins 403-15	20	27 i Use for OE no. 02/630935 Oil Filter	01/2006 → i Use for OE no. 02/630935
8025 ZTS	403C-15/3D-15/3D-17Tier IV
8025 ZTS	403C-15
8025CST	403D-15 Tier IV Perkins
8026 CTS	403D-I5 Tier 3	20	27 i Use for OE no. 02/630935 Oil Filter	10/2012 → i Use for OE no. 02/630935
8027 Z	Perkins 403C-15	21	29 i Use for OE no. 02/630935 Oil Filter	01/2002 → 12/2006 i Use for OE no. 02/630935
8030 Z			i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8030 ZTS	403C-15/3D-15/3D-17Tier IV
8030 ZTS	403C-15
8035 ZTS	403C-17 Perkins
8035 ZTS	403D-17
8040 ZTS	404D-22 Perkins
8045 ZTS	404D-22 Perkins		i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8050 ZTS	404D-22 Tier III Perkins		i Use for OE no. 02/630935 Oil Filter	i Use for OE no. 02/630935
8052	104-2S Perkins	34	46 i Use for OE no. 02/630935 Oil Filter	01/1999 → i Use for OE no. 02/630935
MICRO / MICRO PLUS	403C-11

CX (Baggerlader / Backhoe Loaders) | 87-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1 CX	Perkins 404D-22	2200	36	49	01/2009 → 12/2016

MICRO - Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
MICRO	403C-11
MICRO PLUS	403C-11

ROBOT (Deltalader / Compact Track Loaders) | 96-

	ENGINE CODE	CC	YEAR OF MANUFACTURE
170 (9802/4570)	Perkins 404C-22,404C-22T Tier2	373
170 (9802/5470)	Perkins 404D-22,404D-22T Tier3	373	01/2008 → 01/2013
170 HF (9802/4530)	Perkins 400 Seris	373
170 HF (9802/4570)	404D-22, 404D-22T Tier 3	373	01/2008 → 01/2013
170 HF (9802/4570)	404C-22,404C-22T Tier 2	373
170 Robot (9802/4530)	Perkins 400 Series	373

TLT-Serie (Gabelstapler / Fork Lifts) | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TLT 25 D TCR	Perkins				01/2018 →

500-Serie (Teleskoplader / Telehandler) | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
514-40	Perkins 404D22 NA		36	49	01/2020 →
520-40	Perkins404C-22/404D-22 Tier 3	2200	37	50 i Partly/or. Use for OE no. 02/630935 Oil Filter	i Partly/or. Use for OE no. 02/630935

JUNGHEINRICH

DFG 300 Series | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DFG 320s	Perkins 404C-22	2216	34	46	01/2004 → 01/2009

MANITOU

ATJ/ATS/ATT-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
160 / 180 ATJ (Pack)	Kubota V1505-E		26	35

BT/BTI-Serie | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
BT 420 / 425				i Series 3-E2 Oil Filter	i Series 3-E2

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
20-4 / 25-4 Turbo BUGGIE	Perkins 404C-22T			i Series 2-E2 Oil Filter	i Series 2-E2

MSI-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
20 / 25 / 30 D (BUGGIE)
20 / 25 / 30 T (BUGGIE)
35 Turbo (BUGGIE)

SLT | 06-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
415
415		38	50
420 B	Perkins 404C-22	38	52	01/2006 →

TMT-Serie | 97-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
25.15 CR / 25.20 C / SR /SR XT (SR4W / SR4W XT / 2

WACKER NEUSON

DW (Raddumper / Wheel Dumpers) | 14-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
DW 40	Perkins 403J-E17T Stage V	1663	36	49	01/2020 →

WEIDEMANN (WACKER NEUSON)

1000-Serie | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1260	Perkins 404D-15	1510	25	34	01/2013 → 12/2020

WINGET / DYNAPAC

CC-Serie | 91-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
CC 1000	Perkins HH8146				01/2004 →
CC 1000	Perkins 403C-11		17	24
CC 900	Perkins 403-D11	1130	18	24	01/2011 →
SCC 800-1EN5	Perkins 403 C-11				03/2008 →

CARRARO ANTONIO

Tigrone | 08-14

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
5500	Perkins 404D-22		35	48

ISEKI

Vitra-Serie (Mehrzweck Geräteträger/Multi-purpose)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
Vitra 2030	Caterpillar C 1.1	1130	26	35	11/2013 →
Vitra 2045	Caterpillar	2216	38	51	01/2016 →
Vitra 2060	Caterpillar	2216	45	61	01/2016 →

VALPADANA (ARGO)

1400-Serie | 06-10

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1430 HST / HST-REV (RC00)	Perkins 403C-11	1131	26	35	01/2006 → 12/2010
1430 HST-REV (RC00)	Perkins 403C-11 Tier2				01/2006 → 12/2010

3000-Serie | 19-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
3030 Synchro	Lombardini LDA 914

4000-Serie

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
4033 Syncro	Lombardini LDA 914

ATLAS CRANES + EXCAVATORS

8010489

CATERPILLAR

220-1523

DYNAPAC

4812163878

ISEKI

MOTC1520

J.C.BAMFORD

02/630925
02/630935
02/630935A

MANITOU

702577

MASSEY-FERGUSON

140517050

PERKINS

140 517 050

VALPADANA

6677382A1

VOLVO (TRUCKS/VCE/VME/PENTA)

3840525

Date of update: 2025-03-31 Back to the list Print Submit comment
