REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: 57469 - WIX Filters

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back to the list

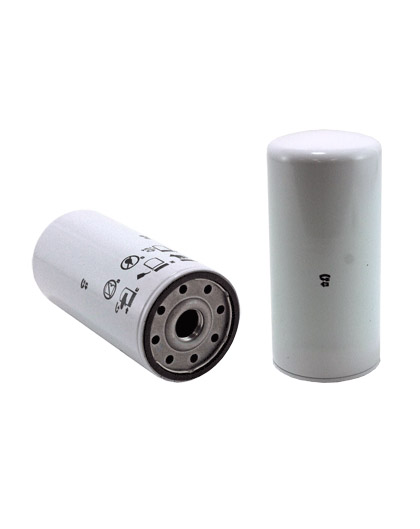

Oil filter: 57469

OIL FILTERS

EAN CODE: 765809574694

Status: AVAILABLE

REACH information

108

102

M 30 X 2

232

By-pass Valve

Yes

Anti-Drain Valve

Yes

Anti-siphon Valve

APPLICATION
SUBSTITUTES

JOHN DEERE

(Planierraupen / Bulldozers)

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
1050 C	Liebherr D 9406	243	330
1050 J	Liebherr D946 L A6	250	340
950 J	Liebherr D 936	182	247 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece

LIEBHERR

A (挖掘机 / Excavator) | 04-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A 914 C	LIEBHERR D934	6871	105	143	01/2007 →
A904C Litronic	Liebherr D 934 S	6400	107	145	01/2008 →

D (Motoren / Engines)

	CC	kW	HP	YEAR OF MANUFACTURE
D 934 L	7000	200	272 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
D 934 S	6400	150	204 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
D 936 L	10500	300	408 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
D 946 L	11900	390	530

L 500 (Radlader / Wheel Loaders) | 84-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
L 538	Liebherr D934 S	105	143
L 538 (Typ 1325)
L 538 (Type 433)
L 542 (Type 435)	Liebherr D934 S A6
L 550	Liebherr D944-A7-14	165	224	01/2013 →
L 550 (Typ 1287)
L 550 (Type 456)	Liebherr D934SAG / D934 A7	130	177	01/2007 →
L 556	Liebherr D944-A7	168	228	01/2016 →
L 556 (Typ 1288)
L 566 (Type 460)
L 566/ L 576/ L 586 (L 566 Typ 460, L 576 Typ 457,
L 566/L 576/ L586	LIEBHERR		i Use for OE no. 10297295 Oil Filter	i Use for OE no. 10297295
L 576 (Type 457)	Liebherr D936L	200	272
L 580 (Type 475 / 458 / 459)	Liebherr D926TI	195	265 i Series Type 580 Oil Filter	i Series Type 580
L 586	Liebherr D 936 A7	260	354	01/2018 →
L 586 (Type 461)	LIEBHERR D936L A6	250	340

LH (Hydraulikbagger / Hydraulic Excavators) | 14-1

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LH 30 (Typ 1181- Typ 1200, Typ 1210)
LH 30 C Litronic (Type 1210)	Liebherr D934 IIIB/Tier 4i		129	175 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
LH 30 M Litronic (Type 1200)	Liebherr D934 IIIB/Tier 4i		129	175 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
LH 35 M Litronic (Type 1201)	Liebherr D934 IIIB/Tier 4i		129	175 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
LH 35 M Litronic (Type 1220)	Liebherr D934 IIIB/Tier 4i		129	175 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
LH 40 - LH 50
LH 40 C Litronic (Type 1211)	Liebherr D934 IIIB/Tier 4i		140	190
LH 40 M Litronic (Type 1202)	Liebherr D934 IIIB/Tier 4i		140	190
LH 50 C Litronic (Type 1221)	Liebherr D934 IIIB/Tier 4i		140	190
LH 50 M Litronic (Type 1203)	Liebherr D934 IIIB/Tier 4i	7000	170	231
LH 60 - LH 80
LH 60 M Litronic			179	244 i Use for OE no. 10297295 Oil Filter	i Use for OE no. 10297295
LH 80 M Litronic			230	313 i Use for OE no. 10297295 Oil Filter	i Use for OE no. 10297295

LR (Laderaupen / Track Loaders) | 85-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
LR 624	Liebherr D934S
LR 624 Li	Liebherr D 934 S	105	143 i Required quantity: 2 Piece Oil Filter	01/2008 → i Required quantity: 2 Piece
LR 634	Liebherr D934 L A6	184	250	01/2007 →
LR 634 Li	Liebherr D 934 L	135	184 i Required quantity: 2 Piece Oil Filter	01/2008 → i Required quantity: 2 Piece
LR 636 Litronic (LIEBHERR)	D 934 A7	135	184 i Use for OE no. 10297295 Oil Filter	01/2015 → i Use for OE no. 10297295

PR (Planierraupen / Bulldozers) | 88-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
734 L / XL / LGP	D926 TI-E	147	200 i From chassis no. 8220-> Oil Filter	i From chassis no. 8220->
744	Liebherr D936 L A6	185	252	01/2006 →
754	Liebherr D946 L A6	250	340	01/2006 →
PR 724 L/ XL / LGP	Liebherr D 934 LA6		i Use for OE no. 10297295. From chassis no. 9200 Oil Filter	i Use for OE no. 10297295. From chassis no. 9200
PR 726	LIEBHERR D934A7	120	163 i Use for OE no. 10297295 Oil Filter	01/2015 → i Use for OE no. 10297295
PR 734 L	LIEBHERR D 926 TI-E		i Use for OE no. 10297295. From chassis no. 8220 Oil Filter	01/2003 → 12/2014 i Use for OE no. 10297295. From chassis no. 8220
PR 734 LGP	LIEBHERR D 926 TI-E		i Use for OE no. 10297295. From chassis no. 8220 Oil Filter	01/2003 → 12/2014 i Use for OE no. 10297295. From chassis no. 8220
PR 734 XL	LIEBHERR D 926 TI-E		i Use for OE no. 10297295. From chassis no. 8220 Oil Filter	01/2003 → 12/2014 i Use for OE no. 10297295. From chassis no. 8220
PR 736	LIEBHERR D934A7	150	204 i Use for OE no. 10297295 Oil Filter	01/2014 → i Use for OE no. 10297295
PR 744	LIEBHERR D936 L A6	185	252 i Use for OE no. 10297295 Oil Filter	01/2006 → i Use for OE no. 10297295
PR 746	LIEBHERR D936A7	185	252 i Use for OE no. 10297295 Oil Filter	01/2014 → i Use for OE no. 10297295
PR 752	D9406 TI-E	243	330	01/1997 → 12/2006
PR 754		243	330 i Use for OE no. 10297295 Oil Filter	01/2006 → 12/2014 i Use for OE no. 10297295
PR 756	LIEBHERR D946A7	250	340 i Use for OE no. 10297295 Oil Filter	01/2014 → i Use for OE no. 10297295
PR 764			i Use for OE no. 10297295 Oil Filter	i Use for OE no. 10297295
PR 764	LIEBHERR D9408TI-E	310	421 i Up to chassis no. 9505 Oil Filter	01/2006 → 12/2014 i Up to chassis no. 9505

R-Serie | 08-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
R 926	Liebherr D 934 S		132	179
R 934 C Litronic	Liebherr D 934 L	7010	150	204

R/A 900 (Hydraulikbagger / Hydraulic Excavators) |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
A 900 C ZW (Type 1030 / 1031 /1032)
A 900C Litronic	D934 S		95	129	01/2003 → 12/2006
A 900C ZW Litronic	D934 S		105	143	01/2012 → 12/2014
A 904C	D934 S A6		105	143 i Required quantity: 2 Piece Oil Filter	01/2006 → 12/2012 i Required quantity: 2 Piece
A 924 (Typ 1180)
A 928 (Typ 1181- Typ 1200, Typ 1210)
A 934 C			150	204	01/2004 → 12/2011
A 934 C	Liebherr D934L		150	204	01/2004 → 12/2011
A 944 C LITRONIC	Liebherr D 936 L		190	258	01/2004 → 01/2011
R 900 C Li / A 900 C Li	Liebherr D924TI-EA2		88	120 i Some models: Type 1002, Type1076 Oil Filter	07/2003 → 12/2007 i Some models: Type 1002, Type1076
R 904 C / A 904 C				i Some models: Type 1003-1071 Oil Filter	i Some models: Type 1003-1071
R 904 C Li / A 904 C Li	D924 TI-E		99	135 i Some models: 1003-1004. 1005-1071 Oil Filter	i Some models: 1003-1004. 1005-1071
R 906 Advanced / R 906 Classic (Type 1139 & 1141)	Liebherr D 934 S	6360	105	143 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
R 906 LC Litronic (1283)	D 934 SA6		120	163 i Required quantity: 2 Piece Oil Filter	01/2009 → i Required quantity: 2 Piece
R 906 LI Advanced	D934SA6	6360	106	144 i Required quantity: 2 Piece Oil Filter	01/2010 → i Required quantity: 2 Piece
R 914 C / A 914 C	Liebherr D 934 S	6360	115	157 i Required quantity: 2 Piece Oil Filter	01/2007 → i Required quantity: 2 Piece
R 916	Liebherr D 934 S		115	156	01/2009 →
R 916 Advanced (Type 1024 / 1025 / 423)	Liebherr D934 SA6			i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece
R 916 Classic (Type 1020 / 1021 / 1088)	Liebherr D934 SA6			i Required quantity: 2 Piece Oil Filter	01/2010 → i Required quantity: 2 Piece
R 924 (Compact)	Liebherr D934 IIIB/Tier 4i	7000	160	218 i Series Type 1055 & 1056 & Tunnel 1083 Oil Filter	01/2008 → 01/2013 i Series Type 1055 & 1056 & Tunnel 1083
R 924 C (Typ 1067-1068-1069-1136-1174)
R 924 C (Typ 1316-1317-1318-1347)
R 924 C / A 924 C / P 924 C
R 926 Advanced / R 926 Classic	Liebherr D934 SA6	6360	130	177	01/2009 → 12/2012
R 926 Compact	Liebherr D834A		120	163	01/2014 →
R 926 Litronic (Typ 1320)	Liebherr D934 A7 IV/Tier 4f	7000	140	190	01/2013 →
R 934 C	Liebherr D934L		150	204	01/2004 →
R 936	Liebherr D934A7		160	218	01/2012 →
R 936 Litronic	Liebherr D934 A7 IV/Tier 4f	7000	170	231
R 946	Liebherr D936A7		200	272	01/2012 →
R 954 C / A 954 C	Liebherr D936		240	326 i Use for OE no. 10297295 Oil Filter	01/2005 → 12/2012 i Use for OE no. 10297295
R 956	Liebherr D936A7		240	326 i Required quantity: 2 Piece Oil Filter	01/2012 → i Required quantity: 2 Piece
R 956	Liebherr D936A7		240	326	01/2012 →
R 956 HD	D936A7 Tier 4	11946	240	326 i Required quantity: 2 Piece Oil Filter	01/2016 → 12/2019 i Required quantity: 2 Piece
R 956 LC-V (1476)	D936A7 Tier 4	11946	240	326 i Required quantity: 2 Piece Oil Filter	01/2017 → i Required quantity: 2 Piece
R 960	Liebherr D936A7		250	340	01/2012 →

RL/SR (Rohrleger / Pipelayers)

	ENGINE CODE	HP	YEAR OF MANUFACTURE
RL 44		i Use for OE no. 10297295 Oil Filter	i Use for OE no. 10297295
RL 52
RL 54 (LIEBHERR)	LIEBHERR	i Use for OE no. 10297295 Oil Filter	i Use for OE no. 10297295
RL 64

TA (Muldenkipper / Dumper / Mining Trucks)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
TA 230 (Type 1156)	Liebherr D 936 L A6		270	367
TA 230 (Type 1393)

LIEBHERR-MOBILKRANE

LTM-Serie | 90-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
LTM 1130-5.1	D 846 A7			i Required quantity: 2 Piece. Crane engine D 846 A7 Oil Filter	i Required quantity: 2 Piece. Crane engine D 846 A7
LTM 1160-5.2			400	544 i Required quantity: 2 Piece Oil Filter	i Required quantity: 2 Piece

JOHN DEERE

AT277119
LW10297295

LIEBHERR

10297295
738111123
