REACH-Information

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH).

Produkt: WL7154 - WIX Filters

MANN+HUMMEL is well aware of REACH and meet all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of presence of SVHC (Substances of Very High Concern).

We may inform you that according to present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in concentration above 0,1% (w/w).

Last update: 2024-09-19

Back to the list

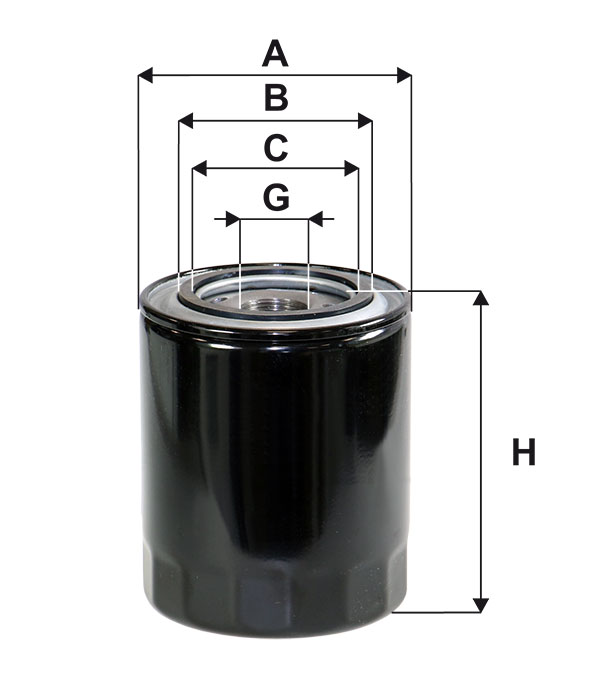

Oil filter: WL7154

OIL FILTERS

EAN CODE: 5050026009124

Status: AVAILABLE

REACH information

102

M26x1.5

127

By-pass Valve

Yes

Anti-Drain Valve

Yes

Anti-siphon Valve

MAY 2019 Note: change in filter design

Due to the introduction of the new production technology for spin-on filters, the connection of the spin-on-element with the filter cover (the so-called "lock") is not painted. The change does not affect the filtering properties of the filters in any way.

The change is planned for the following numbers:
33358E, 92094E, WA10331, WL7131, WL7176, WL7414, 33358SE, 92095E, WF8047, WL7133, WL7177, WL7421, 33690E, 92130E, WF8110, WL7134, WL7198, WL7426, 51093E, 92140E, WF8172, WL7137, WL7199, WL7443 51095E 92149E, WF8267, WL7138, WL7200, WL7448 51189E 95008E, WF8305, WL7143, WL7203, WL7475, 51429E 95014E, WL7065, WL7145, WL7204, WL7482, 51459E, 95028E, WL7069, WL7154, WL7216, WL7491 51607, 95032E, WL7081, WL7160, WL7217, WL7503, 51660E 95034E, WL7085, WL7161, WL7219, WL7510, 51791E, 95035E, WL7090, WL7164, WL7235, WL7512, 51820E, 95037E, WL7102, WL7166, WL7252, WL7516, 92011E, 95041E, WL7107, WL7167, WL7260, WL7517 92017E 95045E, WL7108, WL7171, WL7287, WL7520 92019E 95046E, WL7117, WL7172, WL7298, WL7530, 92027E 95114E, WL7119, WL7174, WL7321, WL7537, 92078E, 95146E, WL7125, WL7175, WL7409, WL7545

APPLICATION
SUBSTITUTES

FORD

Freda Bus | 97-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D (SGLWF, SGLW3F)	WL-T	2499	92	125	12/1997 → 12/2002

HYUNDAI

Galloper II | 97-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D (JK-01)	D4BH	2476	73	99	08/1998 → 12/2003 i -> 05/2000
2.5 TDCI (JK-01)	D4BH	2476	59	80	11/1997 → 06/2003 i -> 05/2000

H-1/H-1 Starex / H 200/ i800 / iLoad / Satellite |

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	D4BB	2476	57	78	10/1997 → 02/2008
2.5 TCI Turbodiesel	D4BH (4D56)	2476	73	99	10/1999 → 11/2001 i -> 05/2000
2.5 TD	D4BF (4D56)	2476	59	80	10/1997 → 02/2008 i -> 05/2000

H100 | 93-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	D4BA/F	2476	57	78	01/1995 → 03/2000
2.5 D (FDX1V/W)	D4BX, D4BA	2476	55	75	07/1993 → 12/1994
2.5 TD (P)	D4BF	2477	59	80	07/1993 → 03/2000

Porter | 94-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	D4BA	2477	57	78	12/1994 → 04/2004

Terracan | 01-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD (HP)	D4BH	2476	74	101	09/2001 → 12/2006

KIA MOTORS

Carnival I / Sedona I (UP) | 99-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.9 TD		2903	93	126	08/1999 → 10/2001

MAZDA

B-Serie (Pickup) | 71-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D 4WD (UF)		2499	57	78	09/1998 → 06/1999
2.5 D 4WD (UF8)	WL	2499	63	86	02/1996 → 07/1999

E 2200-Serie | 84-04

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.2 D (SR1/SR2)	R2	2184	52	71 i From chassis no. 803 501 Oil Filter	02/1997 → 07/2004 i From chassis no. 803 501

MPV | 95-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD (LV)	WLT	2500	85	115	05/1996 → 10/1999

MITSUBISHI

Colt II (C10) | 84-88

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (C14A)	4 D 65	1796	44	60	09/1986 → 04/1988

Colt III (C50) | 88-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (C54A)	4 D 65	1796	44	60	04/1988 → 05/1992

Galant III | 84-87

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 TD (E14A)	4 D 65 T	1795	60	82	06/1984 → 12/1987 i 07/1986 ->

Galant IV | 87-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 TD (E34A)	4 D 65	1796	55	75	12/1987 → 10/1992

Galant V | 92-96

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TD (E57A)	4 D 68	1998	66	90	11/1992 → 08/1996

Galloper | 98-06

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	D4BH	2476	73	99	08/1998 → 12/2006

L 200 | 86-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D	4D56 (8V)	2477	55	75	06/1996 → 03/2006
2.5 D (K14T)	4 D 56	2476	51	70	11/1986 → 08/1996
2.5 D 4x4 (K24,34 T)	4 D 56	2476	51	70	12/1987 → 05/1993
2.5 TD (K64T/K74T)		2477	85	115	10/2001 → 03/2006
2.5 TD (K64T/Liberty)	4D56	2477	98	133	10/2003 → 03/2006
2.5 TD 4x4	4 D 56	2477	64	87	11/1992 → 08/1996
2.5 TD 4x4	4D56-TD	2477	73	99	06/1996 → 12/2007
2.5 TDiC (K64T/K74T)	4D56-T	2477	74	101	08/2001 → 09/2005

L 300 | 80-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.3 D (P05V/P05W/P15V)	4 D 56	2477	51	69	11/1986 →
2.5 D		2477	64	87	11/1994 → 05/2003
2.5 D (P05W/P05V/P15V)	4 D 56	2477	51	69	11/1986 → 02/2006
2.5 D 4x4 (P25 W/P25V)	4 D 56 (Turbo)	2477	64	87	11/1988 → 05/2004
2.5D	4D56 (8V)	2477	55	75	09/1991 → 09/2003

L 400 | 96-01

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD	4D56		64	87	01/1996 → 03/2001

Lancer III | 83-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (C14AS)	4 D 65	1796	44	60	09/1986 → 04/1988
1.8 D St.W. (C14V)	4 D 65	1796	44	60	08/1986 → 06/1992
1.8 D St.W. (C14V)	4 D 65	1796	43	58	09/1985 → 09/1986 i 06/1986 ->

Lancer IV | 88-92

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
1.8 D (C64A)	4 D 65	1796	44	60	04/1988 → 05/1992

Lancer V | 92-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 D (CB8A)	4 D 68	1998	50	68	06/1992 → 09/2003

Pajero I (Shogun/Chall./Montero) | 82-91

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD (L049G)	4 D 56 T	2477	64	87	01/1990 → 12/1991
2.5 TD (L049G)	4 D 56 T	2477	70	95	11/1989 → 11/1990
2.5 TD (L049G)	4 D 56 T	2477	62	84	05/1986 → 10/1989

Pajero II (Shogun/Chall./Montero) | 90-07

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD (V24C/V24W)	4 D 56 TD	2477	73	99	12/1990 → 04/2000

Pajero III (Shogun/Chall./Montero) | 99-

	ENGINE CODE	kW	HP	YEAR OF MANUFACTURE
2.5 TD (V60)	4 D 56 T	85	115	09/2001 → 01/2008
2.5 TD (V60)	4 D 56 T	73	99	01/2000 → 12/2006
2.5 TD Classic (V20)	4 D 56 T	85	115	06/2002 →

Pajero Sport / Montero Sport / Shogun Sport (K90)

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 TD Sport (K90, K94W)	4D56T	2477	73	99	11/1999 → 12/2008
2.5 TD Sport (K90, K94W)	4D56T	2477	98	133	08/2003 → 12/2008
2.5 TD Sport (K90, K94W)	4D56T	2477	85	115	06/2002 → 12/2008

Space Gear | 95-00

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.5 D		2477	64	87	05/1995 → 05/2000
2.5 TD	4 D 56 TD	2477	73	99	05/1995 → 05/2000
2.5 TD 4X4	4 D 56 TD	2477	73	99	05/1995 → 05/2000

Space Runner | 91-02

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TD GLX (N18W)	4 D 68 T	1998	60	82	10/1992 → 08/1999

Space Wagon II | 91-98

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 TD GLX (N38W)	4 D 68 T	1998	60	82	10/1992 → 10/1998

PROTON

Persona 400 | 94-03

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
420 GLS Diesel	4D68	1998	48	65	05/1996 → 04/1999
420 Turbodiesel	4D68T	1998	60	82	09/1996 → 07/2000

Wira / Putra / Jumbuck | 00-

	ENGINE CODE	CC	kW	HP	YEAR OF MANUFACTURE
2.0 D	4D68	1998	50	68	01/2000 → 06/2007
2.0 TDI	4D68T	1998	59	80	01/2000 →

HYUNDAI

26300-42000
26300-42010
26300-42020

MAZDA

V SY1 14302
V SY1 14302 A
V SY1 14302 B
V SY3 14302

MITSUBISHI

MD 069782
MD 184086
MZ 690071

PROTON

PC 121101

TOYOTA

15601-78010

Date of update: 2025-05-29 Back to the list Print Submit comment
